Advanced PD-5A17-FIRE dodatno napajanje
OstaloŠifra: 179773
- Proizvod iz grupe: Dodatna oprema
- Proizvođač: Ostalo
Dostupno:
Maloprodajna cena:
66.637,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
55.531,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
11.106,00 rsd.

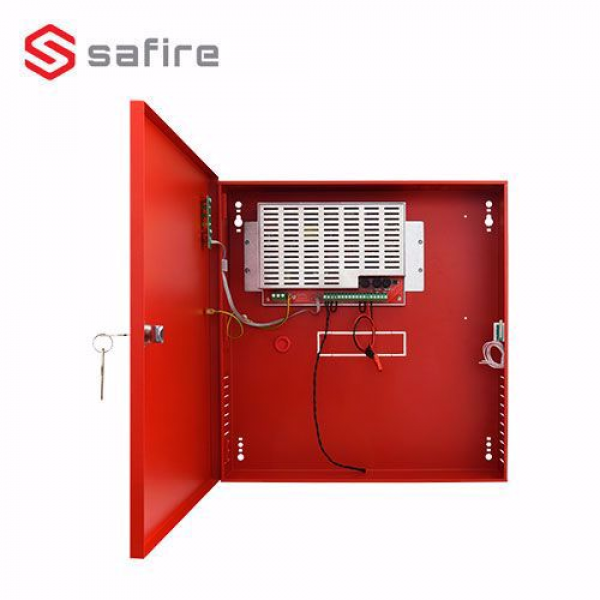

Model: Advanced PD-5A17-FIRE dodatno napajanje
Sertifikat EN54-4; Izlazna struja 4.2A; Do 5A za 5 minuta; Pomoc?ni izlazi kvara; Kapacitet za 2 baterije od 12V 17Ah;
Specifikacije:
| Power supply input | 230VAC |
| Output Voltage | 22~27.6VDC |
| Efficiency | 87% |
| Output current | Nominal: 42A Maximum: 5A (5 minutes) Middle charging current: 0.8A |
| Back-up battery | Supports up to 2x12VDC / 17Ah |
| Permitted cable | Up to 2.5mm2 |
| Protections | SCP, OLP, OVP, UVP, tamper - opening of the box |
| Materials | Plate DC01, 1mm, RAL3001 (red), made of metal |
| Closing | Lock (1xMR027, of the same code) |
| Degree of protection of the enclosure | IP30 |
| Dimensions | 385 x 402 x 88 [+/-2 mm]] |
