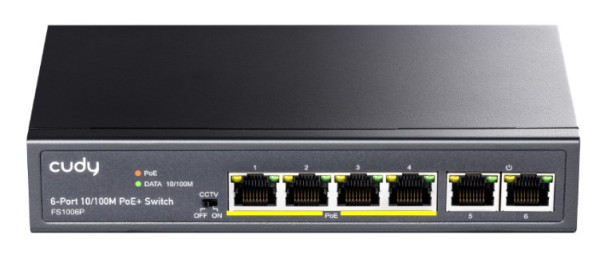

Cudy FS1006P 6-Port 10/100M PoE+ Switch, 60W internal max 32W/PoE, UPLINK, 250m, 4KV protection
- Proizvod iz grupe: Switch uredjaji
- Proizvođač: Cudy

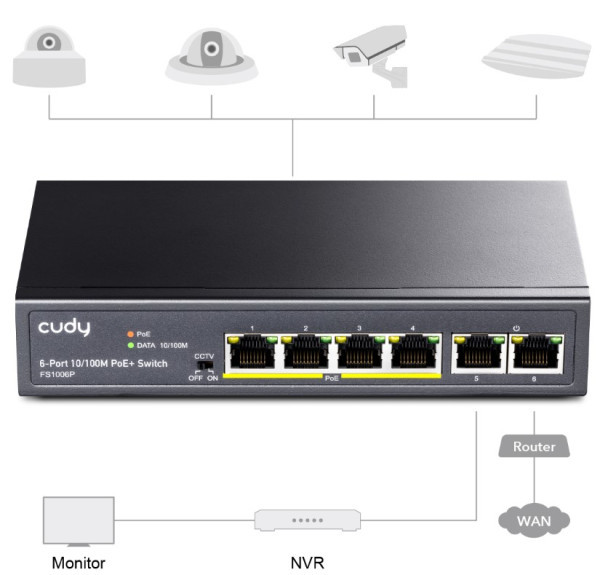

(Alternative : Tenda TEF1106P-4-63W) 6-Port 10/100M PoE+ Switch Complies with IEEE802.3af/at Standard Supports PoE power up to 32W for each PoE port Auto detect non PoE device and PoE device Power prioritization guarantee power supply of key nodes CCTV/VLAN mode switch, remote power and data up to 250m Supports IEEE802.3 x full duplex / half duplex ?ow control Supports storage and forward for Data exchange Specifications Model FS1006P PoE standard IEEE802.3af/at Interface 6*10/100Mbps RJ45 port key function CCTV PoE port 1-4 PoE Total 60W Power supply 65W RJ45 PoE power supply Mode A Anode1/2 Cathode3/6 PoE output-port Max 32W Indicator PWR, LNK/ACT, PoE Network media 10BASE-T: UTP category 3, 4, 5 cable(?100m);100BASE-TX: UTP category 5, 5e cable(?100m) MAC Address Table 2K, Automatic study, automatic updates jumbo frame 1528K Bytes Packet buffer 768K bit Transfer Mode Store-and-forward Packet forwarding rate 0.89Mpps Bandwidth 1.2Gbps Fan Fanless Device Dimension 168*93*32mm Machine weight <1kg Input Voltage AC 100-240V 50/60Hz Output Voltage DC:55V/1.5A Operating Temperature 0°C ~ 40 °C Storage Temperature -40 °C ~ 70 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection ±4KV Certification CE, FCC Class A MTBF >50000 hour Electrostatic standard Contact 4KV, air 6KV
(Alternative : Tenda TEF1106P-4-63W) 6-Port 10/100M PoE+ Switch Complies with IEEE802.3af/at Standard Supports PoE power up to 32W for each PoE port Auto detect non PoE device and PoE device Power prioritization guarantee power supply of key nodes CCTV/VLAN mode switch, remote power and data up to 250m Supports IEEE802.3 x full duplex / half duplex ?ow control Supports storage and forward for Data exchange Specifications Model FS1006P PoE standard IEEE802.3af/at Interface 6*10/100Mbps RJ45 port key function CCTV PoE port 1-4 PoE Total 60W Power supply 65W RJ45 PoE power supply Mode A Anode1/2 Cathode3/6 PoE output-port Max 32W Indicator PWR, LNK/ACT, PoE Network media 10BASE-T: UTP category 3, 4, 5 cable(?100m);100BASE-TX: UTP category 5, 5e cable(?100m) MAC Address Table 2K, Automatic study, automatic updates jumbo frame 1528K Bytes Packet buffer 768K bit Transfer Mode Store-and-forward Packet forwarding rate 0.89Mpps Bandwidth 1.2Gbps Fan Fanless Device Dimension 168*93*32mm Machine weight <1kg Input Voltage AC 100-240V 50/60Hz Output Voltage DC:55V/1.5A Operating Temperature 0°C ~ 40 °C Storage Temperature -40 °C ~ 70 °C Operating Humidity 10% ~ 90% non-condensing Storage Humidity 5% ~ 90% non-condensing Surge Protection ±4KV Certification CE, FCC Class A MTBF >50000 hour Electrostatic standard Contact 4KV, air 6KV
