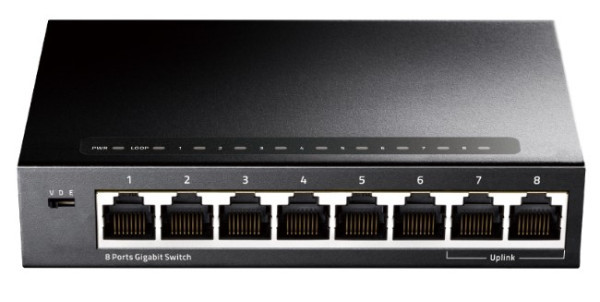

Cudy GS108 metalni 8-Port Gbit desktop Switch, 8x RJ45 10/100/1000 (Alt.1008D)
- Proizvod iz grupe: Switch uredjaji
- Proizvođač: Cudy
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards -8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware -Non-blocking switching architecture enables full wire-speed packets forwarding and filtering -Store-and-Forward switching method -Supports 16K MAC address auto-learning & auto-aging Standard configurati: 8 10/100/1000M RJ-45 adaptive ports Switching Capacity: 16Gbps Throughput: 11.9Mpps Packet Buffer: 2.5M MAC Address: 1K Jumbo Frame: 2K Transfer Mode: Store and forward MTBF: 100000 hour Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Network Medium 10Base-T : Cat3,4,5 or above UTP(=100m) 100Base-TX : Cat5 or above UTP(=100m) 1000Base-TX : Cat5 or aboveUTP(=100m) Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet LED Indicators: PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm) VLAN:Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8; Default:Default mode, Support loop alarm; Extend:Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port Product Size:137*77*25mm Package Size:175*120*63mm Product Net-Weight:0.3kg Product Gross-Weight:0.5kg
-Complies with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards -8 10/100/1000Mbps Auto-Negotiation, Auto-MDI/MDIX ports provide smart switching between 10Mbps, 100Mbps and 1000Mbps hardware -Non-blocking switching architecture enables full wire-speed packets forwarding and filtering -Store-and-Forward switching method -Supports 16K MAC address auto-learning & auto-aging Standard configurati: 8 10/100/1000M RJ-45 adaptive ports Switching Capacity: 16Gbps Throughput: 11.9Mpps Packet Buffer: 2.5M MAC Address: 1K Jumbo Frame: 2K Transfer Mode: Store and forward MTBF: 100000 hour Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Network Medium 10Base-T : Cat3,4,5 or above UTP(=100m) 100Base-TX : Cat5 or above UTP(=100m) 1000Base-TX : Cat5 or aboveUTP(=100m) Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~90%,non-condensing Working Height:Maximum10,000 feet Storage heigh:Maximum 10,000 feet LED Indicators: PWR(Power indicator)?Link(Network Link)?LOOP(Loop alarm) VLAN:Port Isolation, 1-6 ports are isolated each other, all communicate with uplink port 7/8; Default:Default mode, Support loop alarm; Extend:Monitor Mode, 1-6 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 7 and port 8 as uplink port Product Size:137*77*25mm Package Size:175*120*63mm Product Net-Weight:0.3kg Product Gross-Weight:0.5kg
