P/N

CA-1R9-00M1WN-00

SERIES

H Series

MODEL

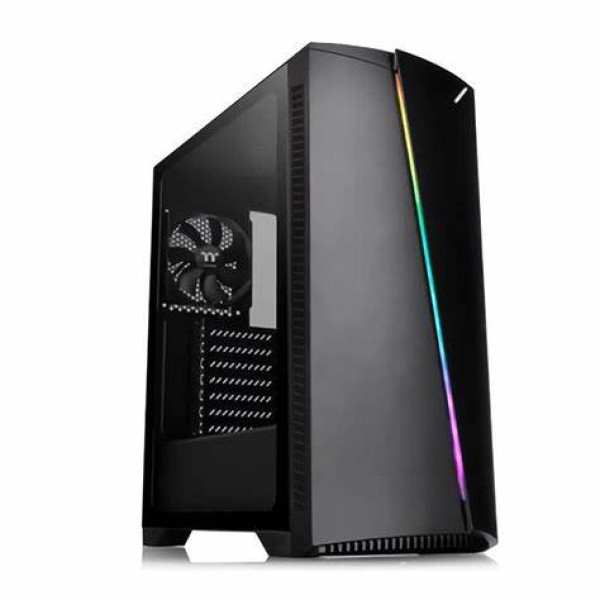

H350 TG RGB

CASE TYPE

Middle tower

DIMENSION (H X W X D)

442 x 210 x 480 mm

(17.4 x 8.27 x 18.9 inch)

NET WEIGHT

6.33 kg / 13.96 lb

SIDE PANEL

4mm Tempered Glass x1(Left)

COLOR

Exterior & Interior : Black

MATERIAL

SPCC

COOLING SYSTEM

Rear (exhaust) :

1 x 120 x 120 x 25 mm fan

(1000rpm, 16 dBA)

DRIVE BAYS

2 x 3.5“ or 2.5” (HDD Rack); 2 x 2.5” (HDD Bracket)

#NAME?

#NAME?

EXPANSION SLOTS

7

MOTHERBOARDS

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)

I/O PORT

1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,

PSU

Bez napajanja

FAN SUPPORT

Front:

3 x 120mm or 2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

2 x 200mm or 1 x 200mm

Top:

2 x 120mm or 1 x 120mm

2 x 140mm or 1 x 140mm

Rear:

1 x 120mm,

RADIATOR SUPPORT

Front: 1 x 360mm or 1 x 240mm or 1 x 120mm

1x 280mm or 1 x 140mm

Top: 1 x 240mm or 1 x 120mm

Rear: 1 x 120mm

CLEARANCE

CPU cooler height limitation: 150mm

PSU length limitation: 160mm(With HDD Rack)

200mm(Without HDD Rack)

VGA length limitation: 300mm

RAM height limitation: 60mm(With radiator series)
