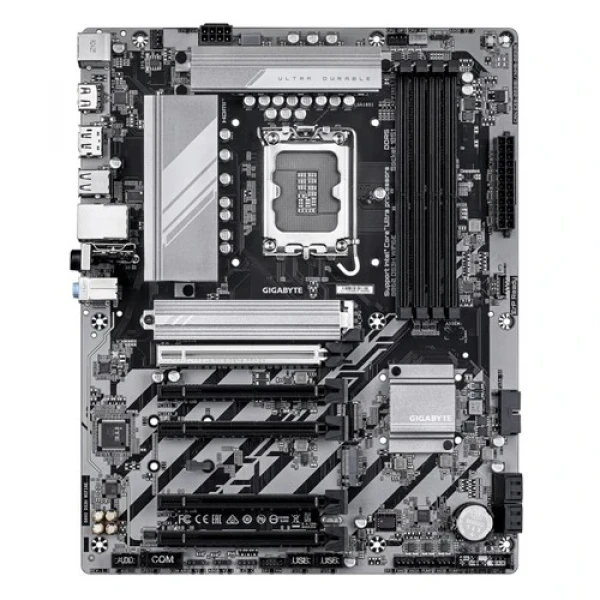

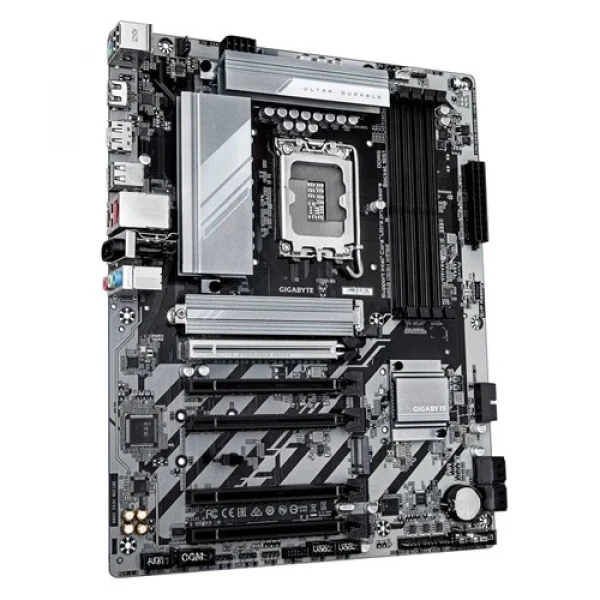

Matična ploča 1851 Gigabyte B860 DS3H WIFI6E 1.0
Šifra: 179126
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
Dostupno:
Maloprodajna cena:
25.170,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
20.975,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
4.195,00 rsd.
| Model | Gigabyte B860 DS3H WIFI6E LGA1851 DDR5 ATX Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel B860 |
| Podrška za procesore | Intel Core Ultra Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version and HDCP 2.3.- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144Hz |
| Slotovi za proširenja | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4) |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Intel Wi-Fi 6E AX211 (PCB rev. 1.0)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standardRealtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard |
| Bluetooth | 5.3 |
| Zvuk (Audio) | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| USB portovi | Chipset:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers |

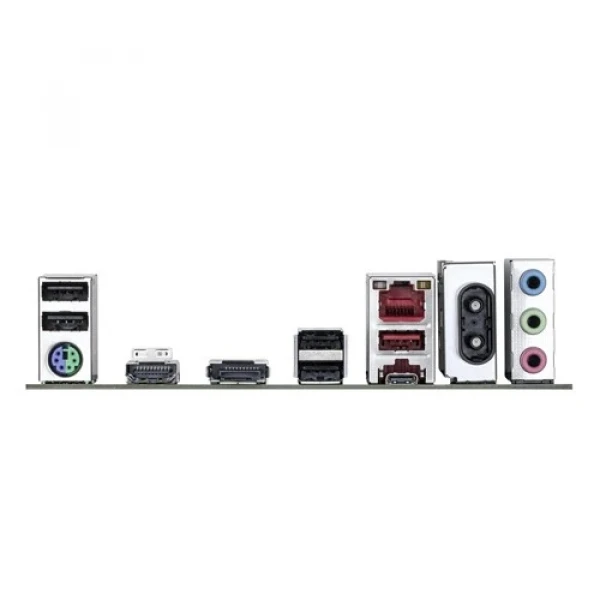

| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port1 x HDMI port1 x DisplayPort1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x RJ-45 port2 x antenna connectors (2T2R)3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| Operativni sistem | Windows 10; Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
| Model | Gigabyte B860 DS3H WIFI6E LGA1851 DDR5 ATX Matična ploča |
| Procesorsko podnožje (Socket) | Intel Socket 1851 |
| Skup čipova (Chipset) | Intel B860 |
| Podrška za procesore | Intel Core Ultra Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 4x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules |
| Podrška za grafiku - portovi | Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60HzSupport for HDMI 2.1 version and HDCP 2.3.- 1 x DisplayPort, supporting a maximum resolution of 3840x2160 144Hz |
| Slotovi za proširenja | CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 4 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1~PCIEX1_4) |
| M.2 portovi | 2x M.2 Socket 3 |
| Čuvanje podataka - portovi | CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Intel Wi-Fi 6E AX211 (PCB rev. 1.0)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standardRealtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1)- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11ax 160MHz wireless standard |
| Bluetooth | 5.3 |
| Zvuk (Audio) | Realtek Audio CODECHigh Definition Audio2/4/5.1/7.1-channelYou can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out |
| USB portovi | Chipset:- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 4 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x PS/2 keyboard/mouse port1 x HDMI port1 x DisplayPort1 x USB Type-C port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 2 Type-A port (red)4 x USB 2.0/1.1 ports1 x RJ-45 port2 x antenna connectors (2T2R)3 x audio jacks |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header2 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB Type-C header, with USB 3.2 Gen 1 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Q-Flash Plus button1 x reset jumper1 x Clear CMOS jumper |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)Support for Q-FlashSupport for Q-Flash PlusSupport for Smart BackupVoltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control |
| Operativni sistem | Windows 10; Windows 11 |
| BIOS | 1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | ATX |
