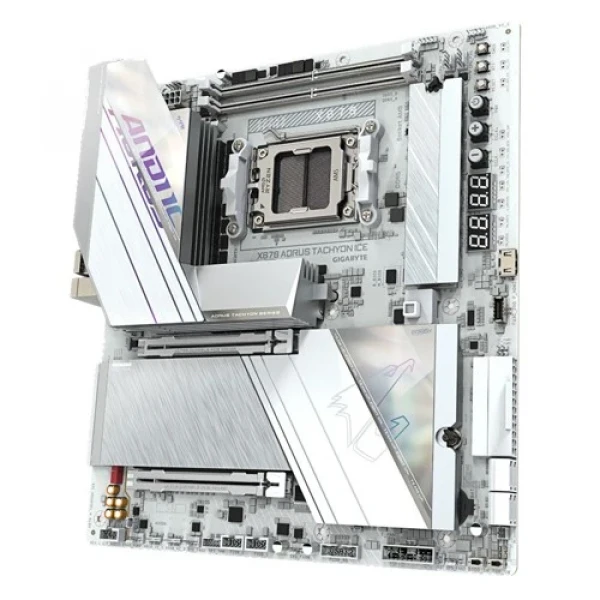

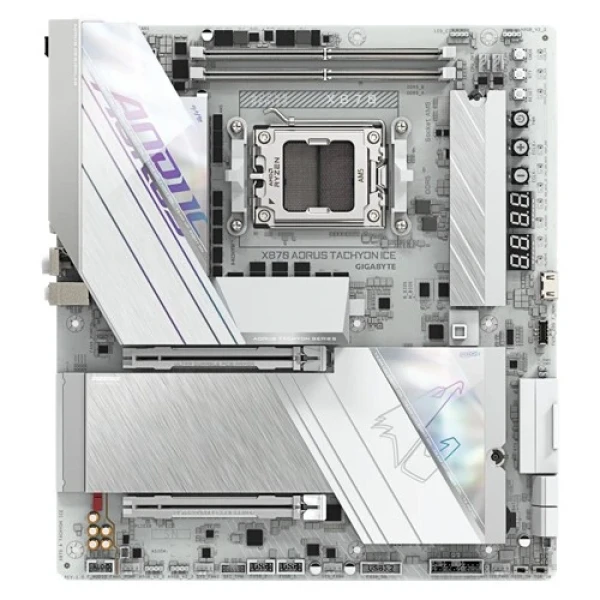

Matična ploca Gigabyte AM5 X870 A TACHYON ICE
Šifra: 181416
- Proizvod iz grupe: Matične ploče
- Proizvođač: GIGABYTE
Dostupno:
Maloprodajna cena:
81.647,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
68.039,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
13.608,00 rsd.
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br>AMD Ryzen 8000 Series Processors<br>AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br>2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br>Dual channel memory architecture<br>Support for ECC and non-ECC Un-buffered DIMM memory modules<br>Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br>- 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br>Support for DisplayPort 1.4 version and HDR.<br>Integrated Graphics Processor with AMD Radeon Graphics support:<br>- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br>Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br>Support for native HDMI 2.1 TMDS compatible ports.<br>- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br>Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br>- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br>- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br>1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br>- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br>- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br>1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br>1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br>4 x SATA 6Gb/s connectors<br>RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br>RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br>RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br>- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br>- Support for 11be 160MHz wireless standard<br>(Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br>The back panel line out jack supports DSD audio.<br>High Definition Audio<br>2/4/5.1/7.1-channel<br>You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br>Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br>- 1 x USB4 USB Type-C port on the back panel<br>CPU:<br>- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br>Chipset+USB 3.2 Gen 1 Hub:<br>- 4 x USB 3.2 Gen 1 ports on the back panel<br>Chipset:<br>- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br>- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br>- 2 x USB 3.2 Gen 1 ports available through the internal USB header<br>- 4 x USB 2.0/1.1 ports available through the internal USB headers |

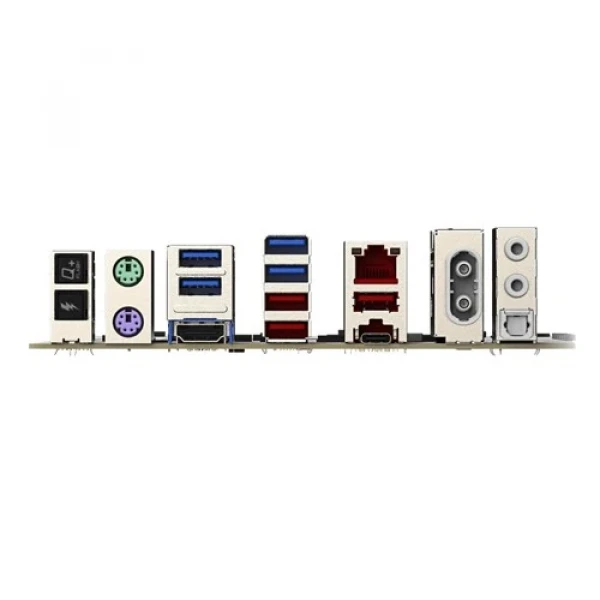

| Konektori na zadnjoj strani | 1 x Q-Flash Plus button1 x OC Ignition button1 x PS/2 keyboard port1 x PS/2 mouse port1 x HDMI port (Note)4 x USB 3.2 Gen 1 ports3 x USB 3.2 Gen 2 Type-A ports (red)1 x USB4 USB Type-C port (DisplayPort (Note))1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br>2 x 8-pin ATX 12V power connectors<br>1 x CPU fan header<br>1 x CPU fan/water cooling pump header<br>4 x system fan headers<br>2 x system fan/water cooling pump headers<br>3 x addressable RGB Gen2 LED strip headers<br>1 x RGB LED strip header<br>3 x M.2 Socket 3 connectors<br>4 x SATA 6Gb/s connectors<br>1 x front panel header<br>1 x front panel audio header<br>1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br>1 x USB 3.2 Gen 1 header<br>2 x USB 2.0/1.1 headers<br>1 x noise detection header<br>1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br>1 x HDMI port (Note)<br>1 x reset jumper<br>1 x Clear CMOS jumper<br>2 x temperature sensor headers<br>1 x power button (PWR)<br>1 x reset button(RESET)<br>1 x Clear CMOS button (CMOS)<br>1 x Cold Reset button (RTY)<br>1 x CPU Clock up button (ECLK+)<br>1 x CPU Clock down button (ECLK-)<br>1 x BIOS switch (BIOS_SW)<br>1 x OC Trigger switch (TGR_SW)<br>Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br>Support for Q-Flash<br>Support for Q-Flash Plus<br>Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br>Use of licensed AMI UEFI BIOS<br>Support for DualBIOS<br>PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
| Procesorsko podnožje (Socket) | AMD Socket AM5 |
| Skup čipova (Chipset) | AMD X870 |
| Podrška za procesore | AMD Ryzen 9000 Series Processors<br>AMD Ryzen 8000 Series Processors<br>AMD Ryzen 7000 Series Processors |
| Tip memorije (RAM) | DDR5 |
| Broj memorijskih slotova | 2x 288-Pin DDR5 |
| Podrška za memorije | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules<br>2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)of system memory<br>Dual channel memory architecture<br>Support for ECC and non-ECC Un-buffered DIMM memory modules<br>Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and ExtremeMemory Profile (XMP) memory modules<br> |
| Podrška za grafiku - portovi | Integrated Graphics Processor with AMD Radeon Graphics support+ASMedia USB4 Controller:<br>- 1 x USB4 USB Type-C port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160 240Hz<br>Support for DisplayPort 1.4 version and HDR.<br>Integrated Graphics Processor with AMD Radeon Graphics support:<br>- 1 x HDMI port, supporting a maximum resolution of 4096x2160 60Hz<br>Support for HDMI 2.1 version, HDCP 2.3, and HDR.<br>Support for native HDMI 2.1 TMDS compatible ports.<br>- 1 x front HDMI port, supporting a maximum resolution of 1920x1080 30Hz<br>Support for HDMI 1.4 version.<br> |
| Slotovi za proširenja | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode<br>- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode<br>- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode<br>1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode |
| M.2 portovi | 3x M.2 Socket 3 |
| Čuvanje podataka - portovi | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:<br>- AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs<br>- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs<br>- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs<br>1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs<br>1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs<br>4 x SATA 6Gb/s connectors<br>RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices<br>RAID 5 is only available on AMD Ryzen 9000 Series Processors.<br>RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| SATA portovi | 4x SATA 6Gb/s |
| LAN | Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) |
| Bežična mreža | Realtek Wi-Fi 7 RTL8922AE<br>- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands<br>- Support for 11be 160MHz wireless standard<br>(Actual data rate may vary depending on environment and equipment.)<br> |
| Bluetooth | BLUETOOTH 5.4 |
| Zvuk (Audio) | Realtek ALC1220 CODEC<br>The back panel line out jack supports DSD audio.<br>High Definition Audio<br>2/4/5.1/7.1-channel<br>You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.<br>Support for S/PDIF Out |
| USB portovi | CPU+ASMedia USB4 controller:<br>- 1 x USB4 USB Type-C port on the back panel<br>CPU:<br>- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel<br>Chipset+USB 3.2 Gen 1 Hub:<br>- 4 x USB 3.2 Gen 1 ports on the back panel<br>Chipset:<br>- 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header<br>- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel<br>- 2 x USB 3.2 Gen 1 ports available through the internal USB header<br>- 4 x USB 2.0/1.1 ports available through the internal USB headers |
| Konektori na zadnjoj strani | 1 x Q-Flash Plus button1 x OC Ignition button1 x PS/2 keyboard port1 x PS/2 mouse port1 x HDMI port (Note)4 x USB 3.2 Gen 1 ports3 x USB 3.2 Gen 2 Type-A ports (red)1 x USB4 USB Type-C port (DisplayPort (Note))1 x RJ-45 port2 x antenna connectors (2T2R)2 x audio jacks1 x optical S/PDIF Out connector |
| Unutrašnji konektori | 1 x 24-pin ATX main power connector<br>2 x 8-pin ATX 12V power connectors<br>1 x CPU fan header<br>1 x CPU fan/water cooling pump header<br>4 x system fan headers<br>2 x system fan/water cooling pump headers<br>3 x addressable RGB Gen2 LED strip headers<br>1 x RGB LED strip header<br>3 x M.2 Socket 3 connectors<br>4 x SATA 6Gb/s connectors<br>1 x front panel header<br>1 x front panel audio header<br>1 x USB Type-C header, with USB 3.2 Gen 2x2 support<br>1 x USB 3.2 Gen 1 header<br>2 x USB 2.0/1.1 headers<br>1 x noise detection header<br>1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)<br>1 x HDMI port (Note)<br>1 x reset jumper<br>1 x Clear CMOS jumper<br>2 x temperature sensor headers<br>1 x power button (PWR)<br>1 x reset button(RESET)<br>1 x Clear CMOS button (CMOS)<br>1 x Cold Reset button (RTY)<br>1 x CPU Clock up button (ECLK+)<br>1 x CPU Clock down button (ECLK-)<br>1 x BIOS switch (BIOS_SW)<br>1 x OC Trigger switch (TGR_SW)<br>Voltage Measurement Points |
| Posebne mogućnosti | Support for GIGABYTE Control Center (GCC)<br>Support for Q-Flash<br>Support for Q-Flash Plus<br>Support for Smart Backup<br> |
| Operativni sistem | Windows 11 |
| BIOS | 2 x 256 Mbit flash<br>Use of licensed AMI UEFI BIOS<br>Support for DualBIOS<br>PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Format | Extended ATX |
