Power supply type | Office Series |
ATX standard | ATX |
Connectors |
|
20+4 pin mainboard | 1x 30 cm |
4+4 pin mainboard 12V | 1x 42 cm |
PCI-Express | 1x 6+2pin |
SATA | 4 (2x 30 / 1x45cm/ 1x60cm) |
PATA | 4 (2x 30/1x45cm 1x60cm) |
FDD | / |
Mark of conformity | TÜV, CE |

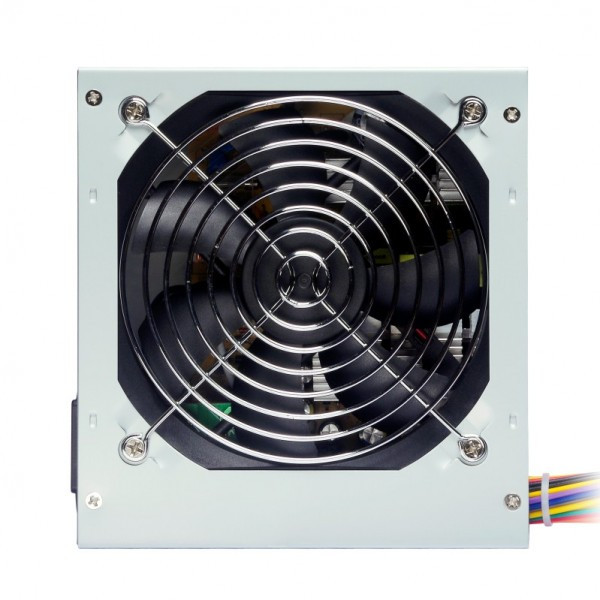

Fan | 120 mm |
PFC | Active |
Dimension h x w x d | 87 x 150 x 140 mm |
Weight (retail) | 1,395 kg |

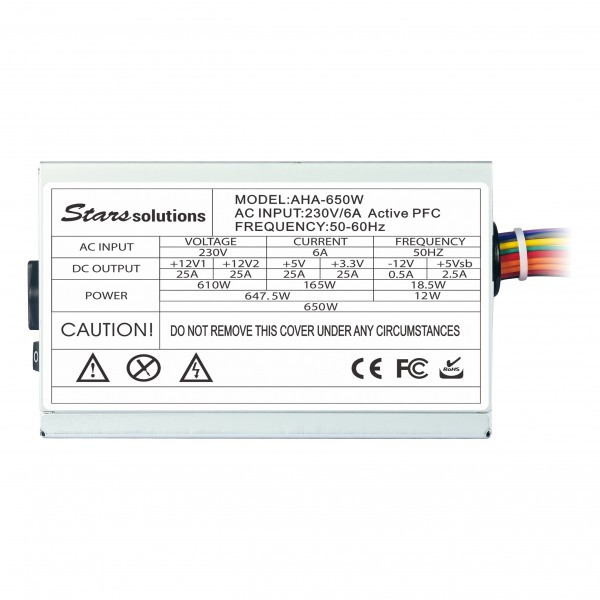

Power rating | 650W max. / peak |
+3,3V | 25A |
+5V | 25A |
+12V | 25A |
Power supply type | Office Series |
ATX standard | ATX |
Connectors |
|
20+4 pin mainboard | 1x 30 cm |
4+4 pin mainboard 12V | 1x 42 cm |
PCI-Express | 1x 6+2pin |
SATA | 4 (2x 30 / 1x45cm/ 1x60cm) |
PATA | 4 (2x 30/1x45cm 1x60cm) |
FDD | / |
Mark of conformity | TÜV, CE |
Fan | 120 mm |
PFC | Active |
Dimension h x w x d | 87 x 150 x 140 mm |
Weight (retail) | 1,395 kg |
Power rating | 650W max. / peak |
+3,3V | 25A |
+5V | 25A |
+12V | 25A |
