TMD15 detektor PIR
OstaloŠifra: 179627
- Proizvod iz grupe: Senzori i detektori
- Proizvođač: Ostalo
Dostupno:
Maloprodajna cena:
12.995,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
10.829,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
2.166,00 rsd.

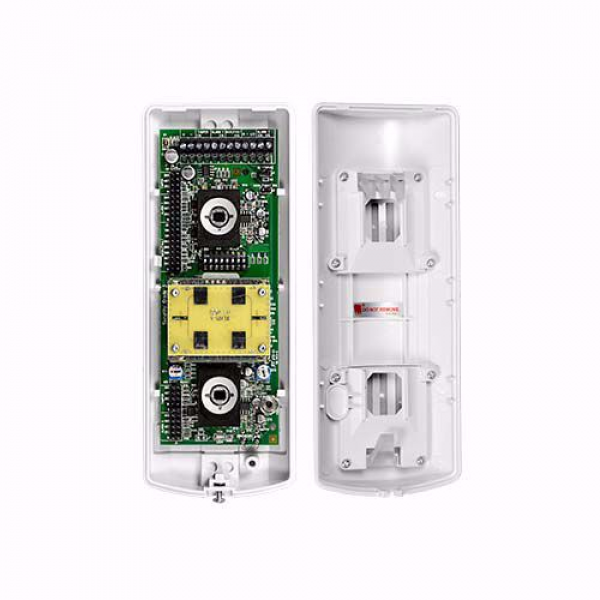

Model: TMD15 detektor PIR
Trostruka tehnologija PIR detekcije; Funkcija protiv maskiranja; Integrisani EOL otpornik; 2 infracrvena, 1 mikrotalasni senzor; Domet detekcije 15m; Grade 3 sertifikat;
Specifikacije:
| Technology | 2 x PIR and 1 x Microwaves |
| Security grade | Grade 3 |
| PIR lens | 54 zones and 6 planes |
| Detection range | 15 m / 90? for installation height = 2.4 m |
| Pet immunity | No |
| Masking | Adjustable from 0 to 1 m |
| Sensitivity | Adjustable Automatic or High |
| Detection speed | 0.25~2.5 m/s |
| Relay Output | 3 x SELV, DC 60 V 50 mA |
| Tamper switch | Front and rear, DC 12 V 50 mA |
| Temp. operation | -10? C ~ 40? C |
| Dimensions (without bracket) | 190 (H) x 82 (W) x 82 (D) mm |
Model: TMD15 detektor PIR
Trostruka tehnologija PIR detekcije; Funkcija protiv maskiranja; Integrisani EOL otpornik; 2 infracrvena, 1 mikrotalasni senzor; Domet detekcije 15m; Grade 3 sertifikat;
Specifikacije:
| Technology | 2 x PIR and 1 x Microwaves |
| Security grade | Grade 3 |
| PIR lens | 54 zones and 6 planes |
| Detection range | 15 m / 90? for installation height = 2.4 m |
| Pet immunity | No |
| Masking | Adjustable from 0 to 1 m |
| Sensitivity | Adjustable Automatic or High |
| Detection speed | 0.25~2.5 m/s |
| Relay Output | 3 x SELV, DC 60 V 50 mA |
| Tamper switch | Front and rear, DC 12 V 50 mA |
| Temp. operation | -10? C ~ 40? C |
| Dimensions (without bracket) | 190 (H) x 82 (W) x 82 (D) mm |
