Uniarch UV-XVR104G2 snimac
OstaloŠifra: 179632
- Proizvod iz grupe: IP mrežni snimač
- Proizvođač: Ostalo
Dostupno:
Maloprodajna cena:
11.676,00 rsd.
cena za odloženo plaćanje i kupovinu na rate
WebCena:
9.730,00 rsd.
cena za web porudžbine i avansno plaćanje
Popust:
1.946,00 rsd.

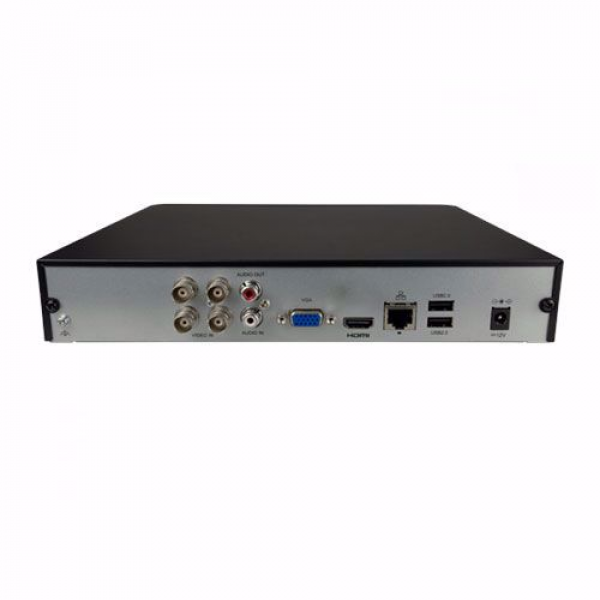

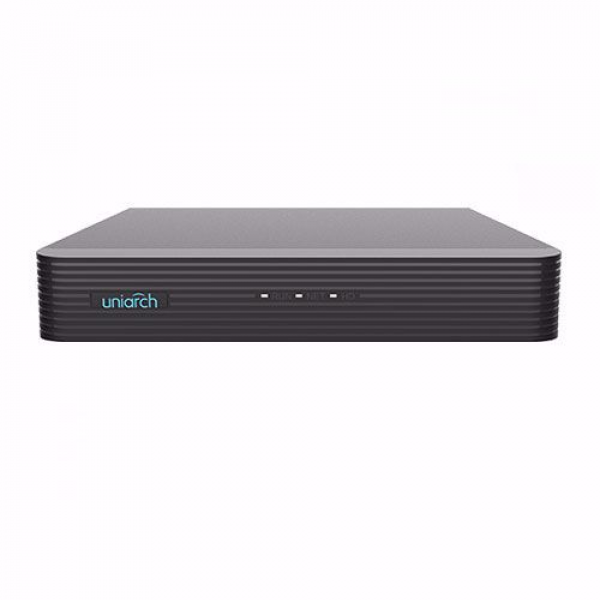

Model: Uniarch UV-XVR104G2 snimač
Video rekorder 5u1; Uniarch 4CH HDTVI / HDCVI / AHD / CVBS + 2 dodatna IP; Podržava 1 hard disk;
Specifikacije:
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4CH BNC |
| Hybrid configuration | Up to 6 IP Channels (4Mpx) replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog cameras supported | TVI / AHD: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720P@60FPS CVI: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 4MP@30FPS(CH1); 1080P@30FPS; 720P@30FPS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Main Stream recording encoding | TVI/CVI/AHD: 5MPLite@12fps; 4MPLite@15fps; 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@12FPS; D1@15FPS; D1@30FPS |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 HDD SATA 3.5\ of up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 8W |
| Dimensions / Weight | 46 (H) x 260 (W) x 243 (Fo) mm / 1 kg |
Model: Uniarch UV-XVR104G2 snimač
Video rekorder 5u1; Uniarch 4CH HDTVI / HDCVI / AHD / CVBS + 2 dodatna IP; Podržava 1 hard disk;
Specifikacije:
| Video format | HDTVI / HDCVI / AHD / CVBS / IP |
| Video inputs | 4CH BNC |
| Hybrid configuration | Up to 6 IP Channels (4Mpx) replacing all the BNC channels |
| Video outputs | 1 HDMI Full HD, 1 VGA |
| Audio inputs | 1 Channel RCA |
| Audio outputs | 1 Channel RCA |
| Bidirectional audio | Reusing the audio input/output |
| Display resolution | 1920x1080, 1600x1200, 1280x1024, 1280x720, 1024x768 |
| Maximum IP recording resolution | 4 Mpx |
| Analog cameras supported | TVI / AHD: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 5MP@12FPS; 4MP@15FPS; 1080P@30FPS; 720P@60FPS CVI: 5MP@20FPS(CH1); 4MP@30FPS(CH1); 4MP@30FPS(CH1); 1080P@30FPS; 720P@30FPS *For the correct live display, the combination of resolution and FPS of the connected analog cameras must be equal to or lower than the specifications indicated, but in no case higher than the specifications indicated. |
| Main Stream recording encoding | TVI/CVI/AHD: 5MPLite@12fps; 4MPLite@15fps; 2MP@15FPS; 720P@30FPS |
| Extra Stream recording encoding | D1@12FPS; D1@15FPS; D1@30FPS |
| Recording method | Manual, programmed, motion detection |
| Internal memory | 1 HDD SATA 3.5\ of up to 6TB (not included) |
| External interface | 2 x USB (Mouse and backup) / RJ45 10M/100M/1000M (Ethernet) / RS485 |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Power | DC 12V / 8W |
| Dimensions / Weight | 46 (H) x 260 (W) x 243 (Fo) mm / 1 kg |
